  • No. 1409
  • 26,5 m 20,4 m 2,9 m
  • 30,6 x 25,4 m
  • from 5 to 14
  • 2,9 m
  • 1,0 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

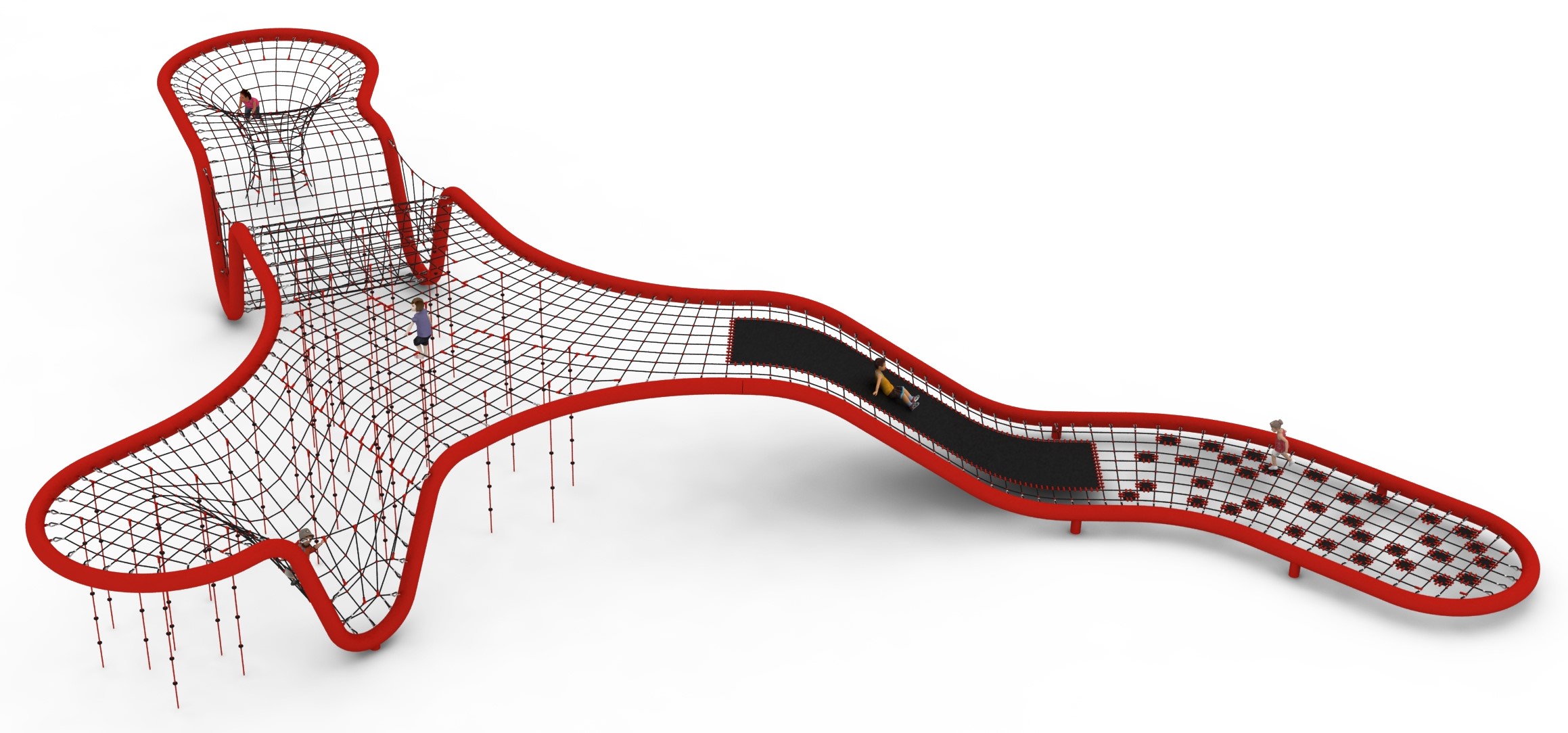

The main structural element is a 273 mm diameter steel pipe, which is protected against corrosion by hot-dip galvanizing and painting. The device is anchored in the ground with reinforced concrete feet. The nets are made of polyamide rope, braided, glued reinforced with galvanized steel strings. The diameter of the rope is 18 mm. The connectors used are made of polyamide. Press crimped elements made of aluminum. Connection of ropes to the steel structure by : hot-dip galvanized shackle, stainless steel caoutchouc. The average size of the mesh eye is 350 x 350 mm.
Additional attractions of the toy are:
– mats are made of 8 mm thick rubber reinforced with four layers of polyamide mesh. There are two types of mats: one longitudinal with a width of about 1.5m, and 33 small mats that fill individual fields of the mesh,
– 40 climbing ropes equipped with plastic handles.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
