- No. 435
- 4,3 m 4,3 m 3,4 m

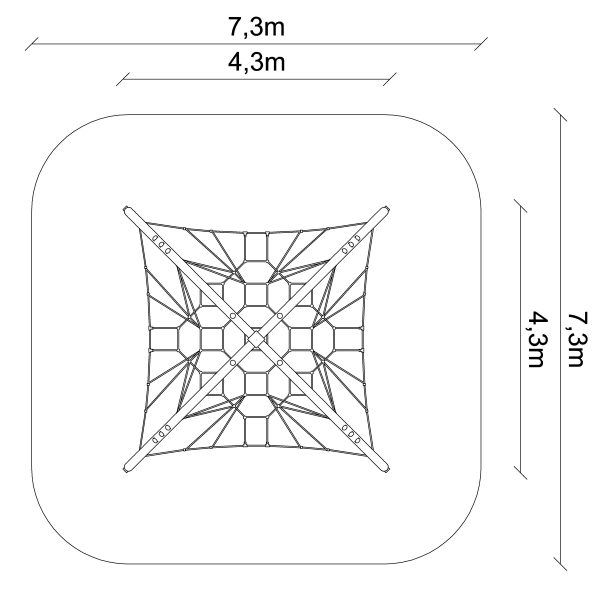

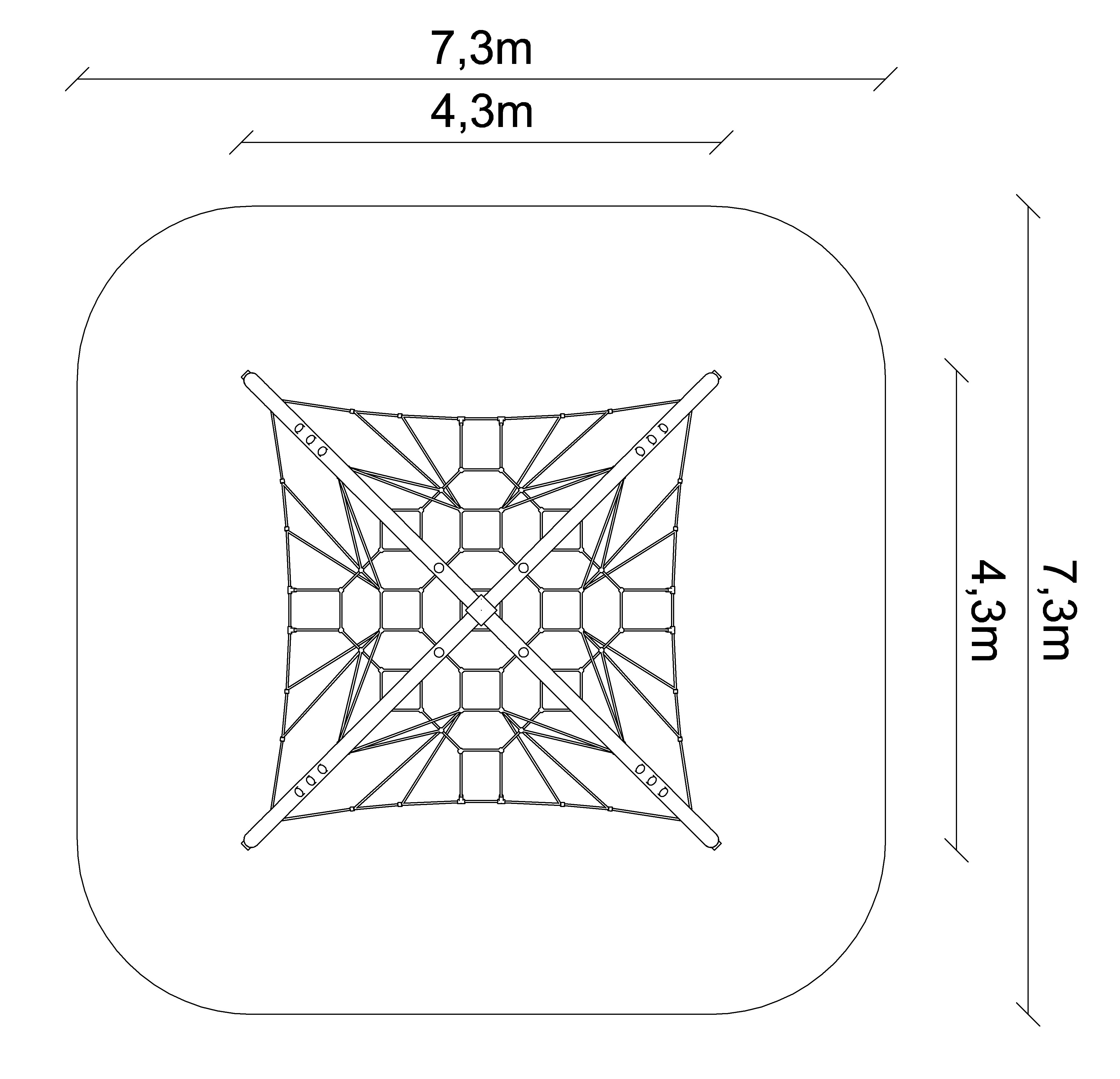

- 7,3 x 7,3 m
- from 5 to 14
- 1,3 m
- 1,0 m
- necessary access for heavy construction machines
- the equipment has a certificate in accordance with the standard, issued by the competent certification body
DESCRIPTION

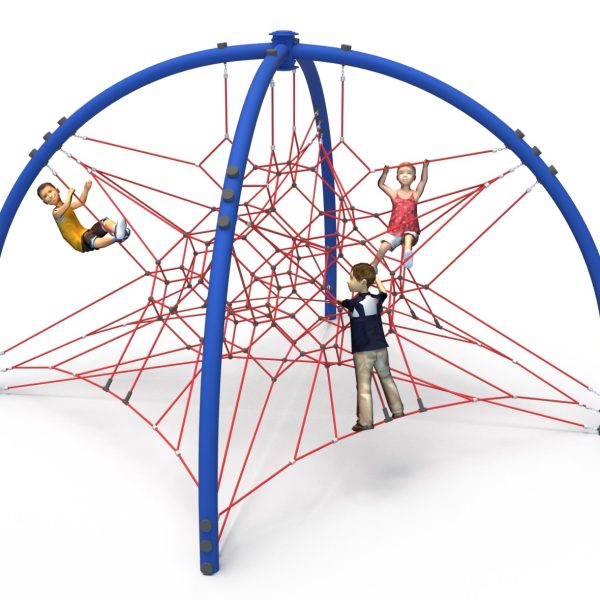

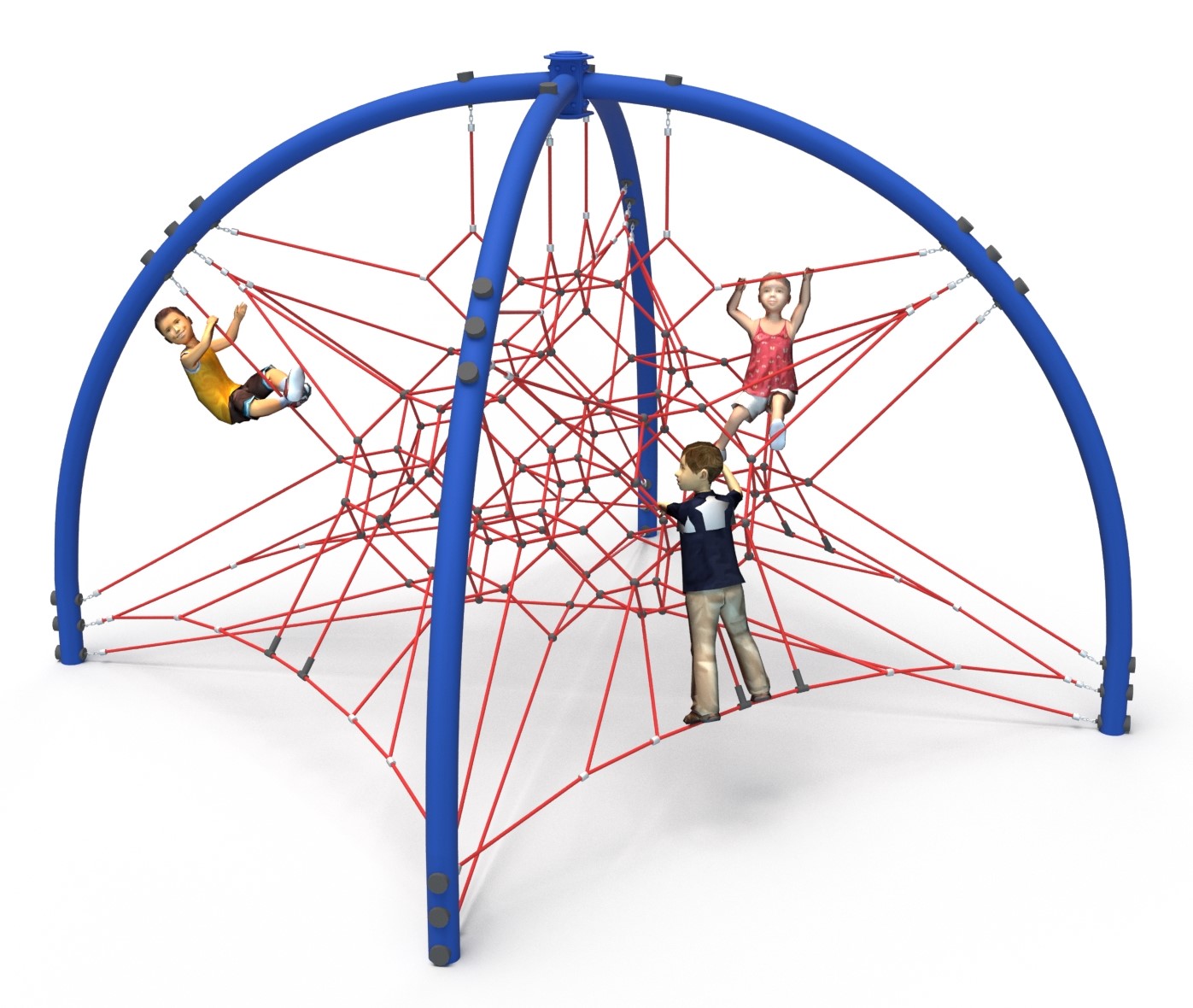

The device consists of four steel arches, made of bent round pipes of min. 139.7mm. A rope net is attached to the arches. All rope attachments to the structure have the ability to adjust the tension. The amount of rope used – 160 m.
Steel structure made of black steel protected against corrosion by hot-dip galvanizing, optional powder coating. The rope elements are made of polyamide, braided, bonded ropes with a diameter of 18mm, connected by connectors made of aluminum, stainless steel and plastic. The element on top of the structure is made of HPL. Foundation of the steel structure made as reinforced concrete footings.
Heavy construction equipment accessibility is required for installation.
The fall area of the device should be made on a surface in accordance with EN 1176-1:2017-12.
