  • No. 401
  • 10,0 m 6,0 m 3,0 m
  • 13,0 x 9,0 m
  • from 5 to 14
  • 3,0 m
  • 1,0 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

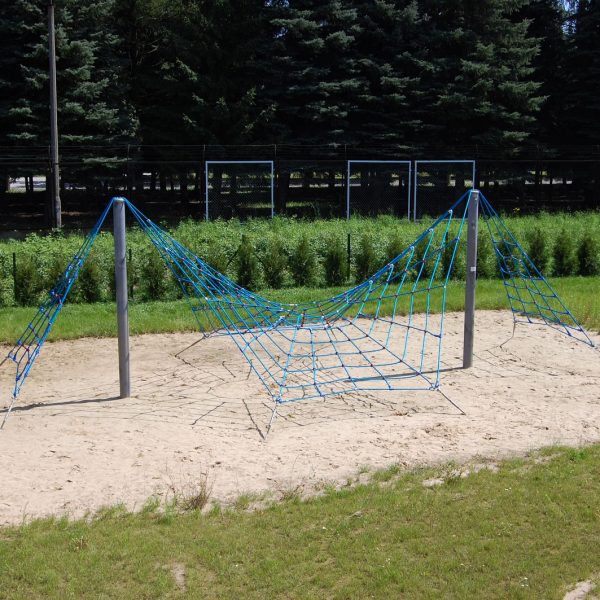

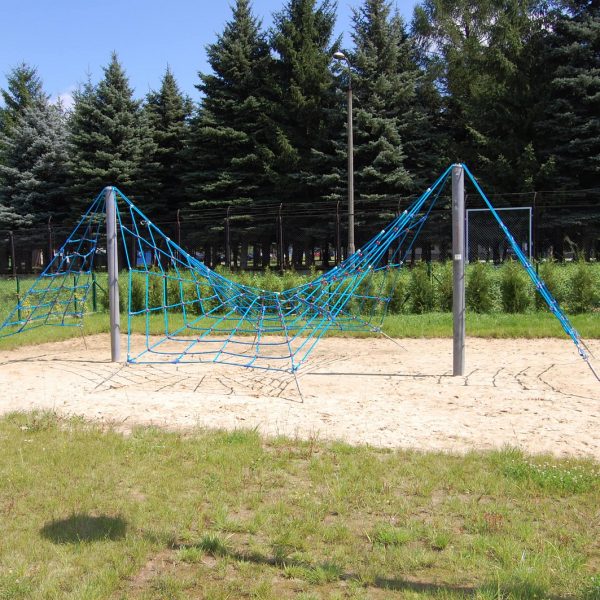

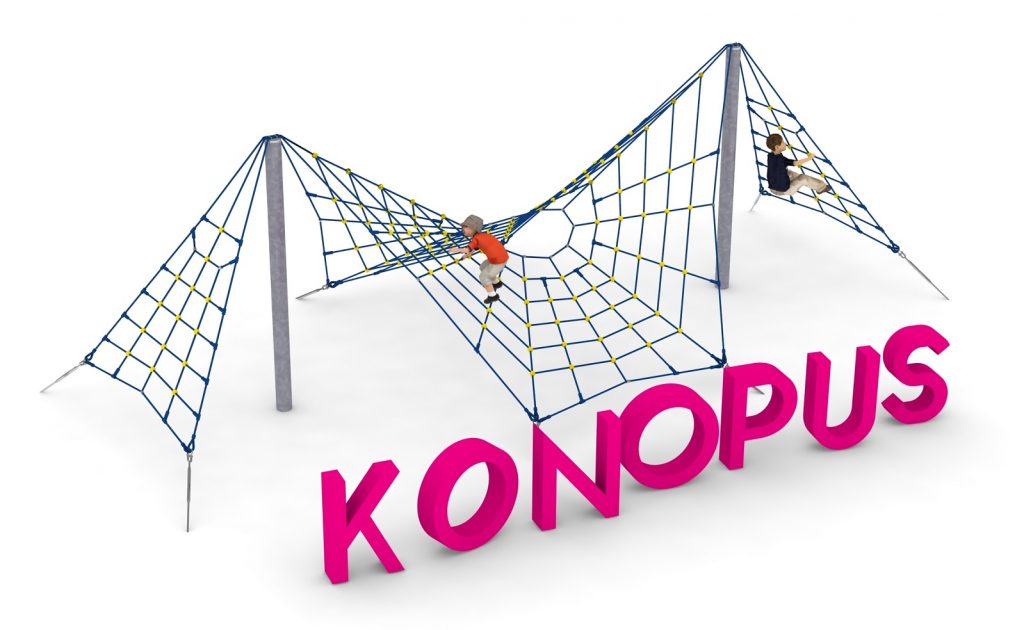

The device consists of two 168.3 mm diameter steel poles anchored in the ground with reinforced concrete footings, on which a spiderweb-shaped rope structure is tensioned. The steel elements are protected from corrosion by hot-dip galvanizing. As an additional attraction, two triangular rope walls go off to the sides and are anchored in the ground with hot-dip galvanized anchor plates. The turnbuckles that allow tension adjustment are protected from corrosion by hot-dip galvanizing. The rope used is 18 mm in diameter and is braided, glued, reinforced with steel and made of polyamide. The elements connecting the ropes to each other are made of polyamide, aluminum or stainless steel.
Optional painting.
The structure of the device at the request of the customer can be painted by powder or “wet” spray painting according to RAL.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.

DOWNLOADS
Product card
Download
DWG file
Download
