  • No. 412
  • 14,3 m 12,4 m 2,6 m
  • 16,1 x 14,4 m
  • from 5 to 14
  • 2,6 m
  • 1,0 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

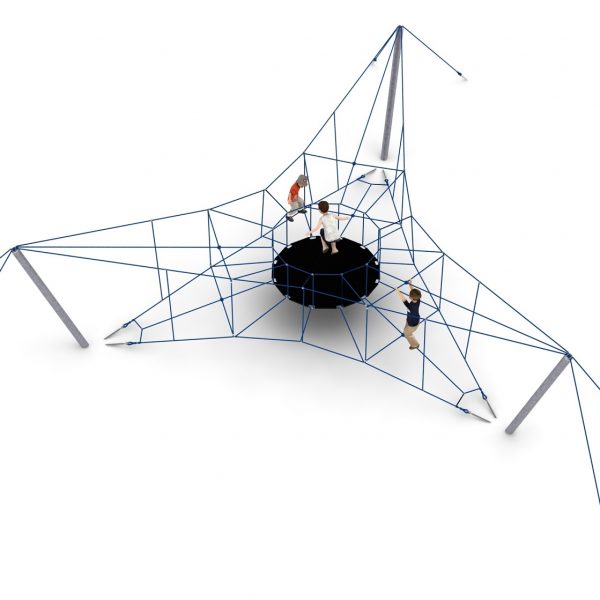

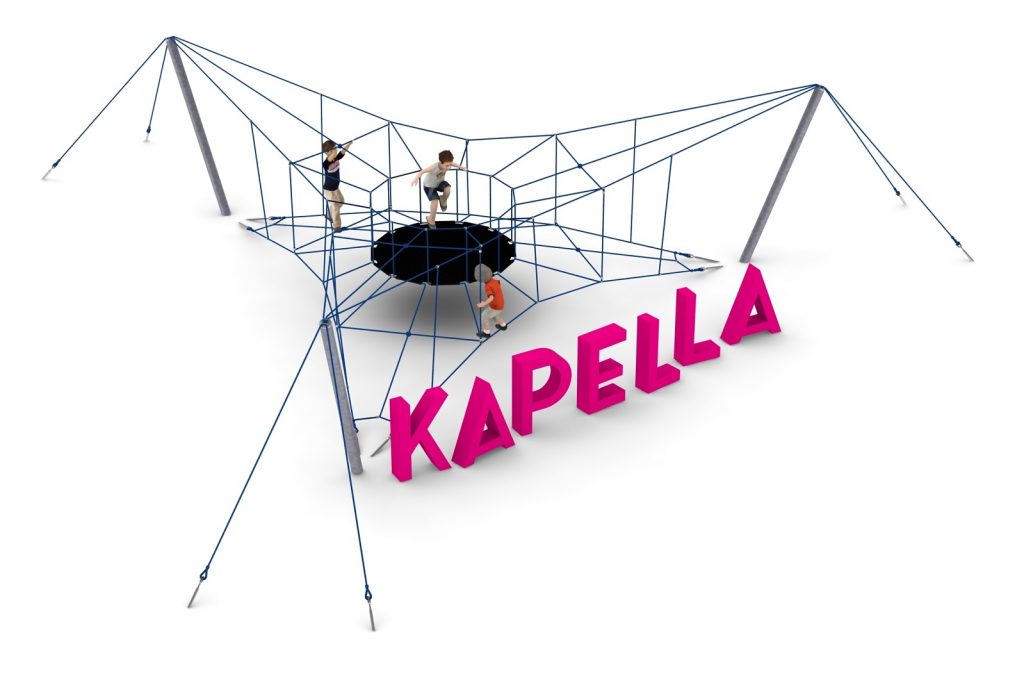

KAPELLA is a device consisting of three steel poles, a rubber mat inside the rope structure, a rope structure. The steel structure is composed of three steel poles made of 139.7 mm diameter pipe. The steel structure is protected against corrosion by hot-dip galvanizing. The rope parts are made of polyamide, braided, glued ropes of 18mm diameter, connected by connectors made of aluminum, stainless steel and plastic. The tension of the rope part is provided by turnbuckles anchored in the ground. The turnbuckles are protected against corrosion by hot-dip galvanizing. The membrane is 10 mm thick and is reinforced with four layers of polyamide mesh. The foundation of the steel structure is made as reinforced concrete footings.
Optional painting.
The structure of the device at the request of the customer can be painted by powder or “wet” spray painting according to RAL.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
