- No. 1403
- 19 m 11,2 m 3,0 m
- 23,9 x 16,1 m
- from 3 to 14
- 2,9 m
- 1,0 m
- necessary access for heavy construction machines
- the equipment has a certificate in accordance with the standard, issued by the competent certification body

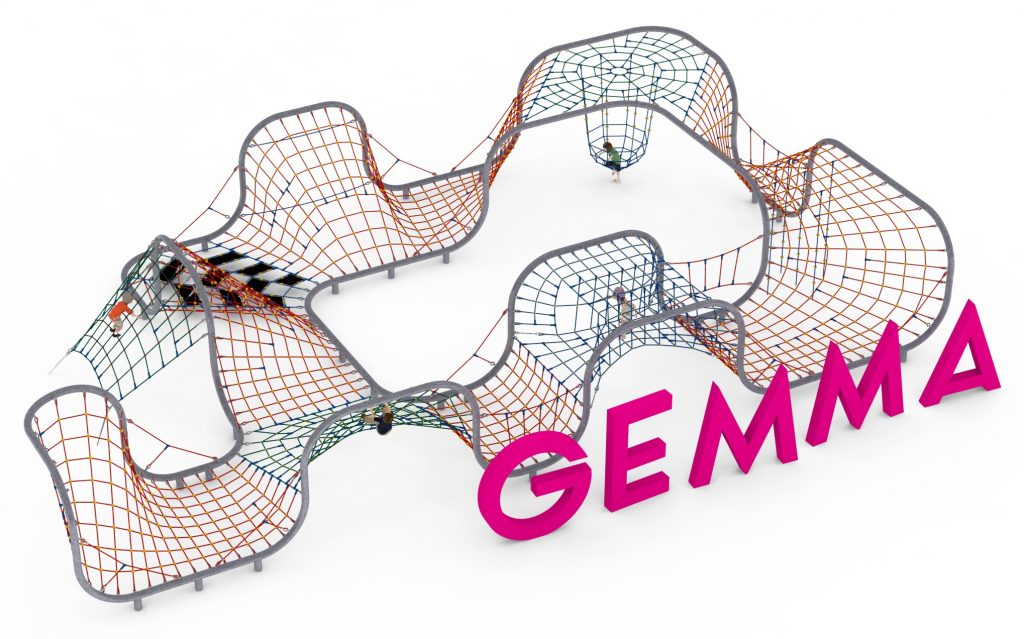

The main structural element is a steel frame made of 139.7 mm diameter pipe, which is protected against corrosion by hot-dip galvanizing. The frame is formed by interconnected straight or bent pipes at different angles. A rope structure is stretched on the support structure thus created. Additional attractions are: rope basket , 0.5×0.5 m mats – 9pcs, climbing ropes – 5pcs, vertical rope walls of different shapes and a net stretched between the ground and the upper pipe of the structure. The rope structure is made of polyamide rope, braided, glued reinforced with galvanized steel strings. The diameter of the rope is 18 mm. The elements connecting the ropes to each other are made of plastic and aluminum. The elements connecting the ropes to the frame are made of stainless steel. The device is anchored in the ground with reinforced concrete feet.
Optional painting.
The structure of the device at the request of the customer can be painted by powder or “wet” spray painting according to RAL.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
