  • No. 1416

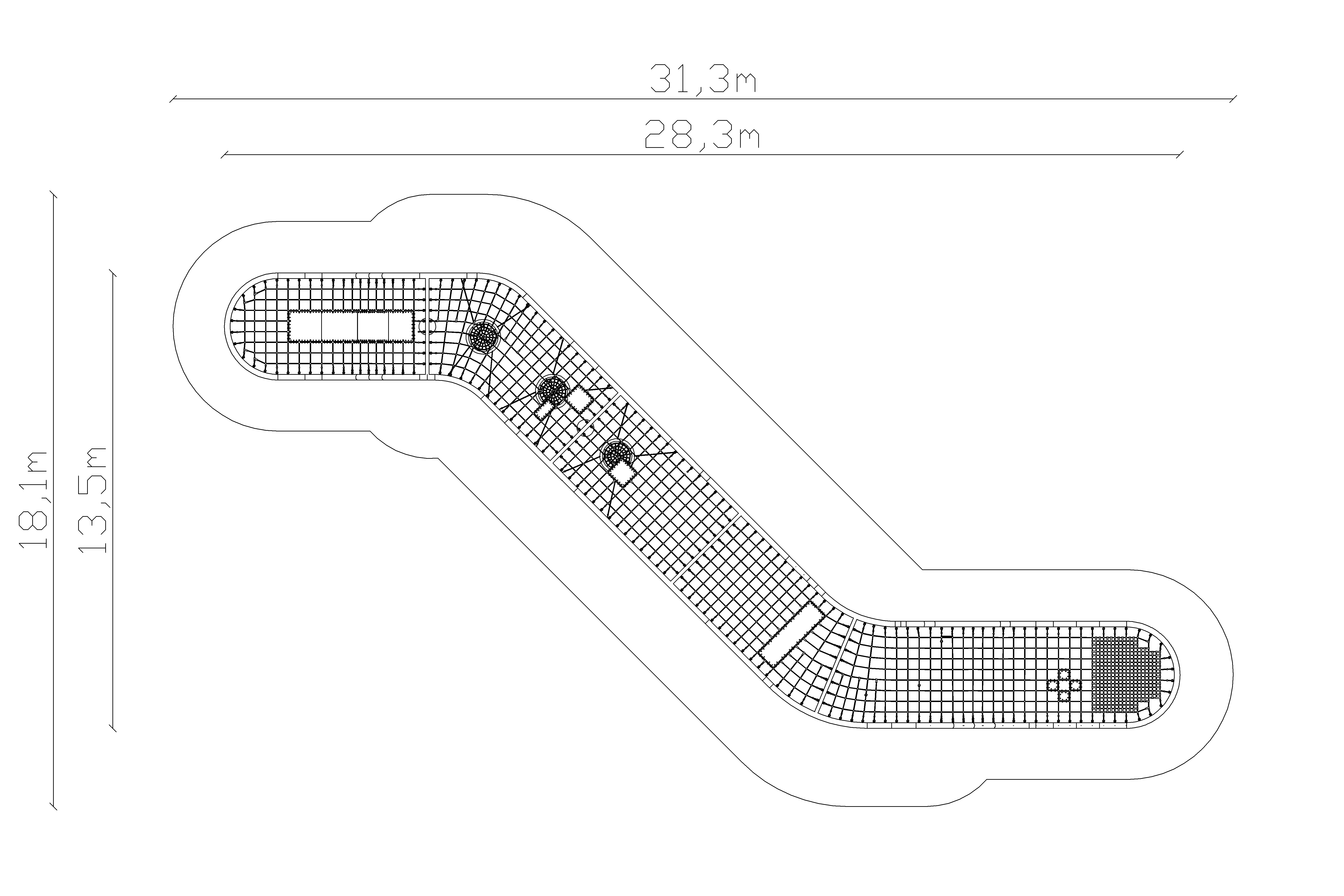

  • 28,3 m 13,5 m 2,6 m
  • 31,3 x 18,1 m
  • from 5 to 14
  • 2,5 m
  • 1,0 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

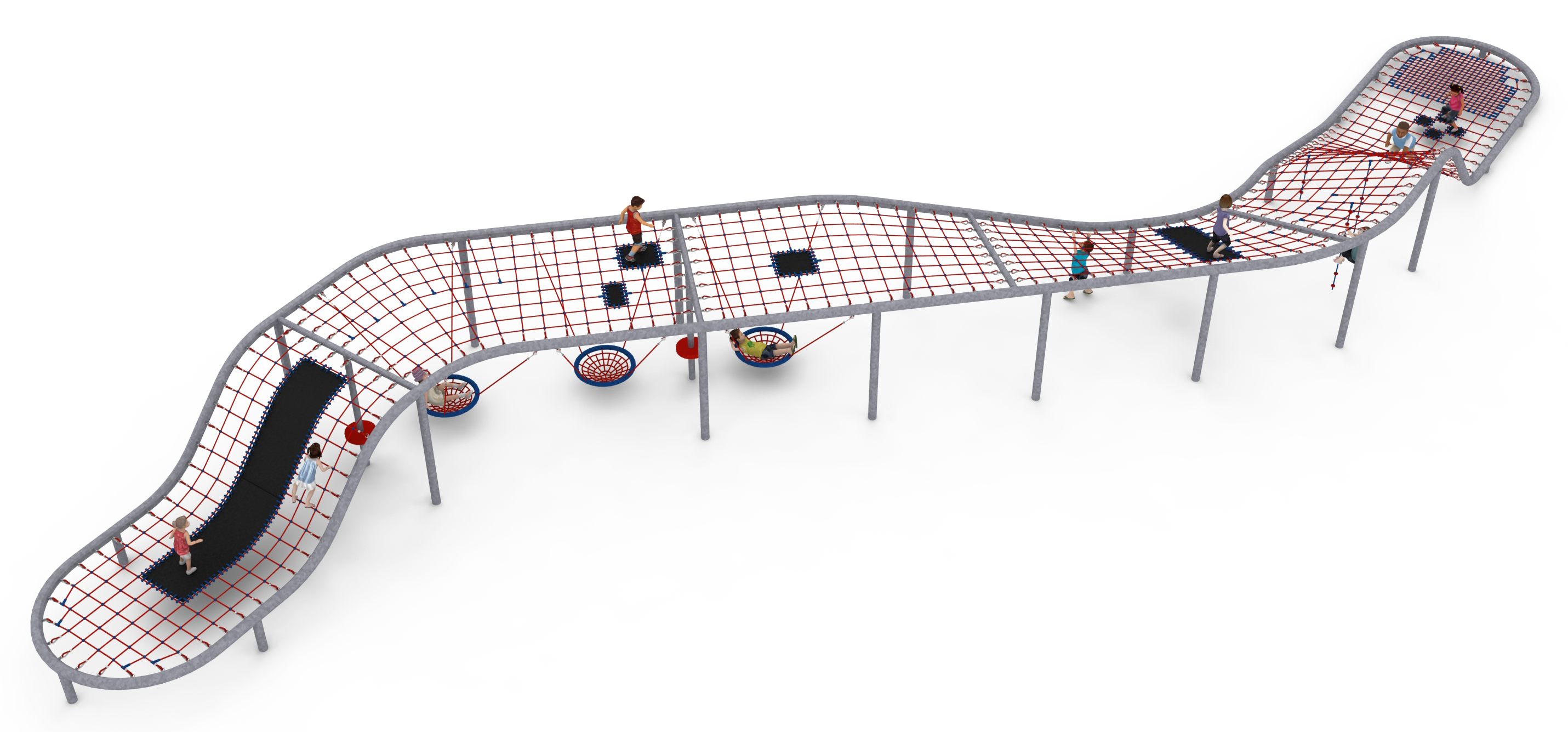

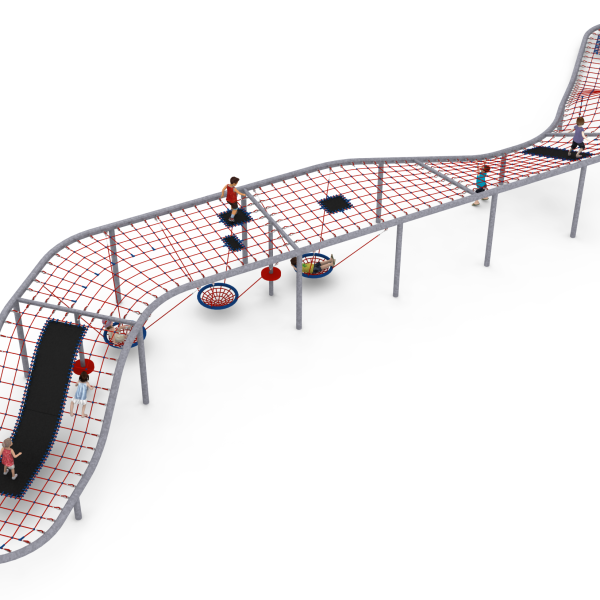

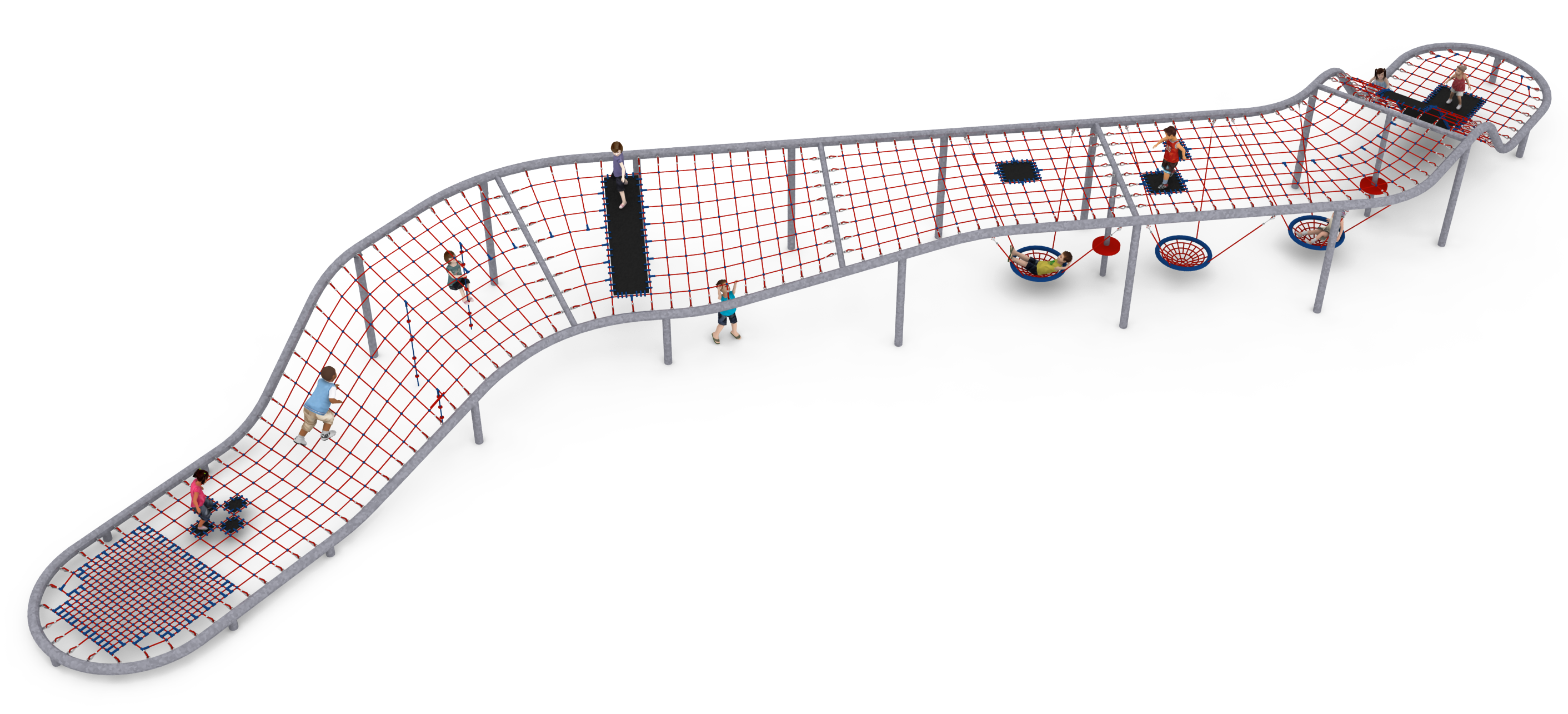

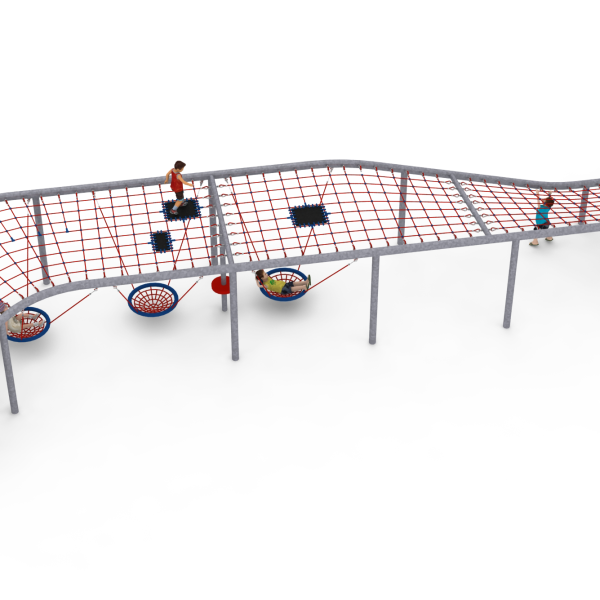

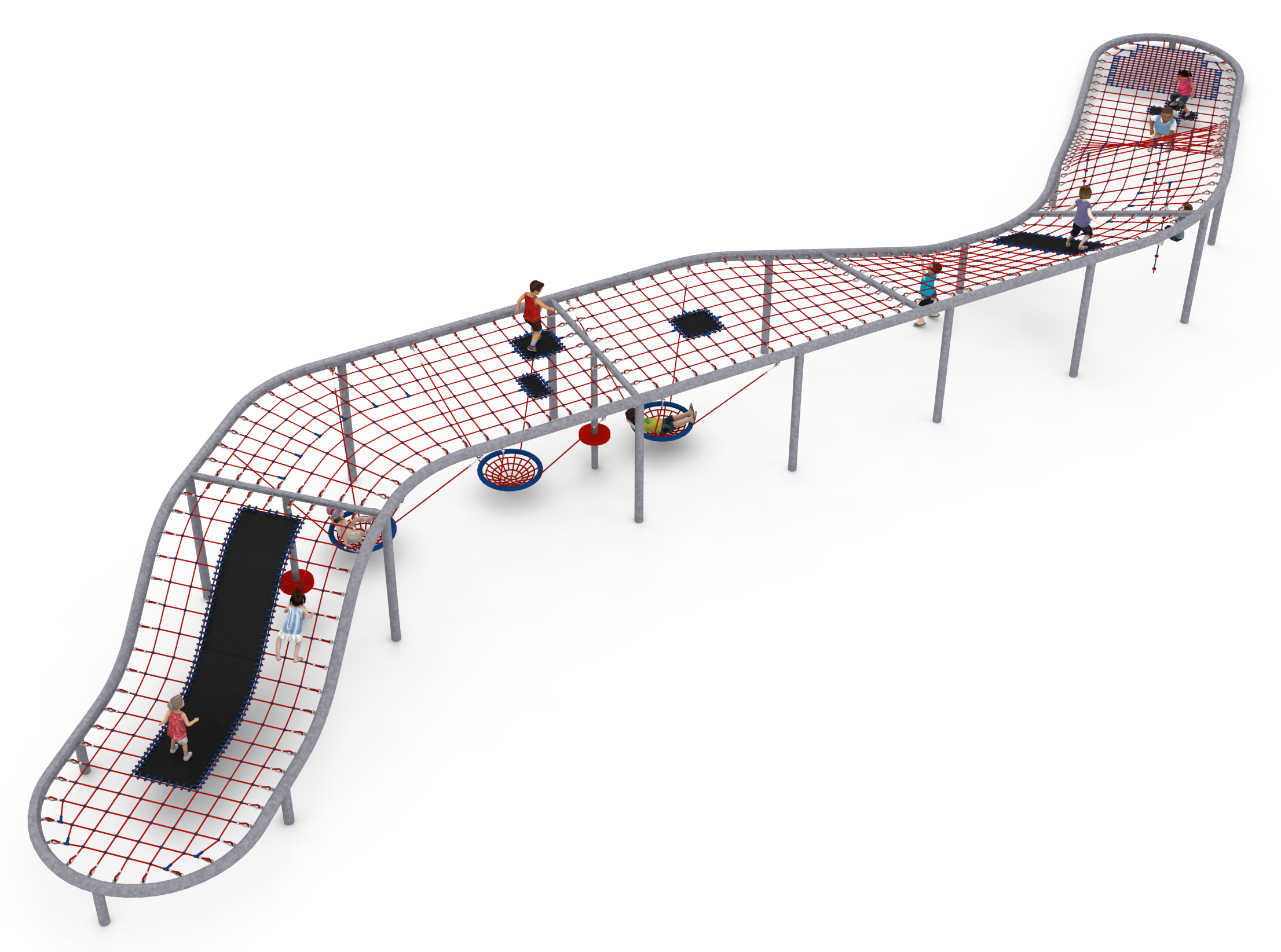

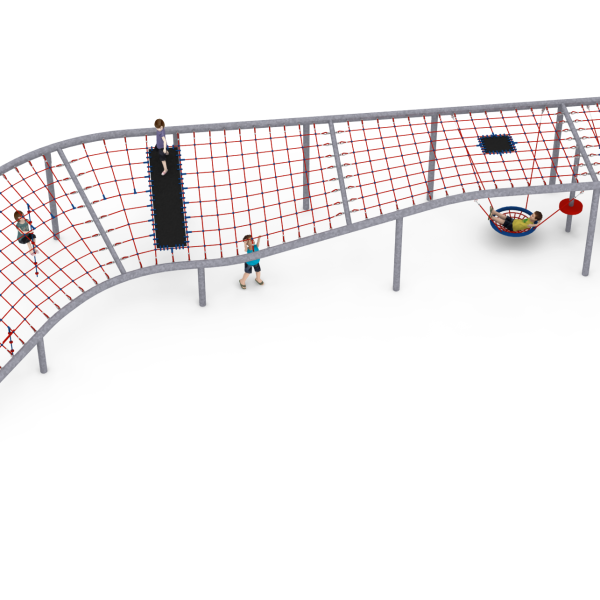

The main structural element is a 168.3mm diameter steel pipe and 139.7mm diameter vertical poles. Structure protected against corrosion by hot-dip galvanizing. The device is anchored in the ground with reinforced concrete footings. The nets are made of polyamide rope, braided, glued reinforced with galvanized steel strings. The diameter of the rope is 18 mm. The connectors used are made of polyamide. Press-forged parts made of aluminum. Connection of ropes to the steel structure by : hot-dip galvanized shackle, stainless steel thimble. The average mesh eye size is 350 x 350 mm. Additional attractions include:
– 3 climbing ropes, equipped with plastic handles,
– 3 “Stork Nest” type seats with a diameter of 950 mm,
– 2 plates installed to vertical poles,
– large rubber mat, attached to the sloping part of the structure, allowing climbing and sliding. 8mm thick rubber mat, reinforced with four layers of polyamide mesh,
– 8 rubber mats of different shapes and sizes. 8mm thick rubber mat, reinforced with four layers of polyamide mesh,
– one end equipped with a dense net with a medium mesh size of 120 x 120mm.
Optional painting.
The structure of the device at the request of the customer can be painted by powder or “wet” spray painting according to RAL.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
