  • No. 411
  • 7,1 m 5,1 m 3,0 m

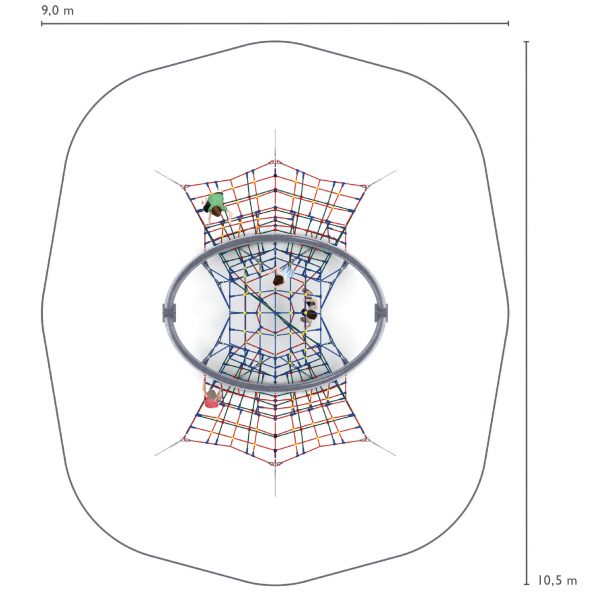

  • 10,5 x 9,0 m
  • from 5 to 14
  • 3,0 m
  • 0,8 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

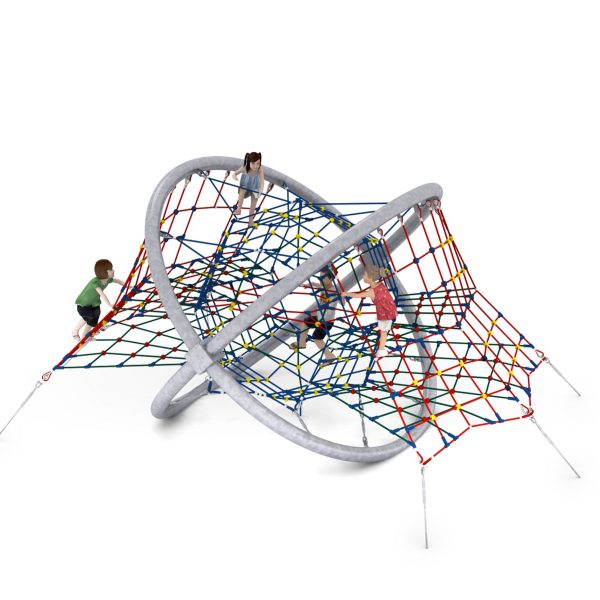

JUMBO is a device consisting of a ball-shaped steel structure, a rope ball inside the steel structure, a rope jacket extending beyond the outline of the steel structure, and two rope floors. The steel structure is composed of four steel arches bent from 139.7-diameter pipes, connected to each other at 90 degrees. The steel structure is protected from corrosion by hot-dip galvanizing. The rope parts are made of polyamide, braided, glued ropes of 18mm diameter, connected by couplings made of aluminum, stainless steel and plastic. The tension of the rope part is provided by turnbuckles attached to the structure or anchored in the ground. The turnbuckles are protected against corrosion by hot-dip galvanizing. The foundation of the steel structure is made as reinforced concrete footings.
Optional painting.
The structure of the device at the request of the customer can be painted by powder or “wet” spray painting according to RAL.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
