  • No. 408
  • 5,0 m 0,95 m 1,55 m
  • 6,0m x 5,2m
  • from 3 to 14
  • 1,2 m
  • 1 m

  • necessary access for heavy construction machines

  • the equipment has a certificate in accordance with the standard, issued by the competent certification body

DESCRIPTION

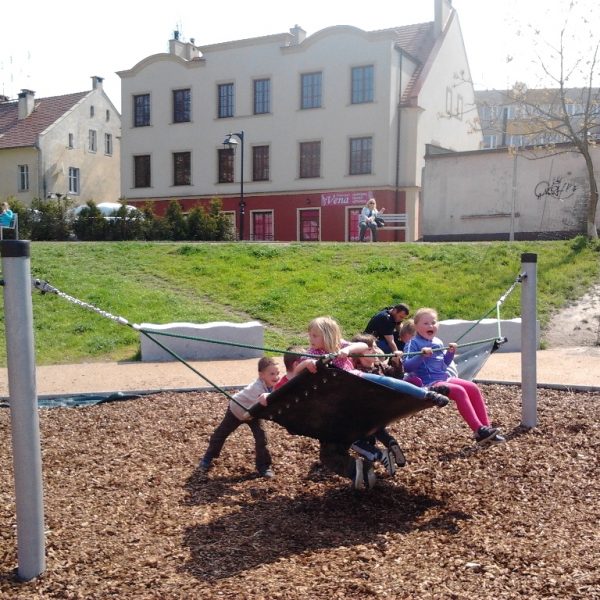

BELLATRIX is a single device resembling a hammock. The supporting structure consists of steel poles protected against corrosion by hot-dip galvanizing. The poles are connected to the ground by reinforced concrete footings. The membrane is suspended from a braided polyamide rope reinforced with galvanized steel strings. The diameter of the rope is 18mm. The diaphragm is connected to the rope by a crossbar made of stainless steel, suspended from the rope by acid-resistant steel clamps. The membrane is reinforced with four layers of polyamide mesh. The device includes two ropes, connected to each other by aluminum crimps. The ropes are attached to the poles through bearing-mounted slings made of stainless steel. The sling has the ability to work in two directions. The connecting element between the ropes and the slings are stainless steel chains, forged to the ends of the ropes with an aluminum connector.
The fall area of the equipment should be made on a surface in accordance with PN EN 1176- 1:2017. The possibility of access by heavy construction equipment is required for the installation.
